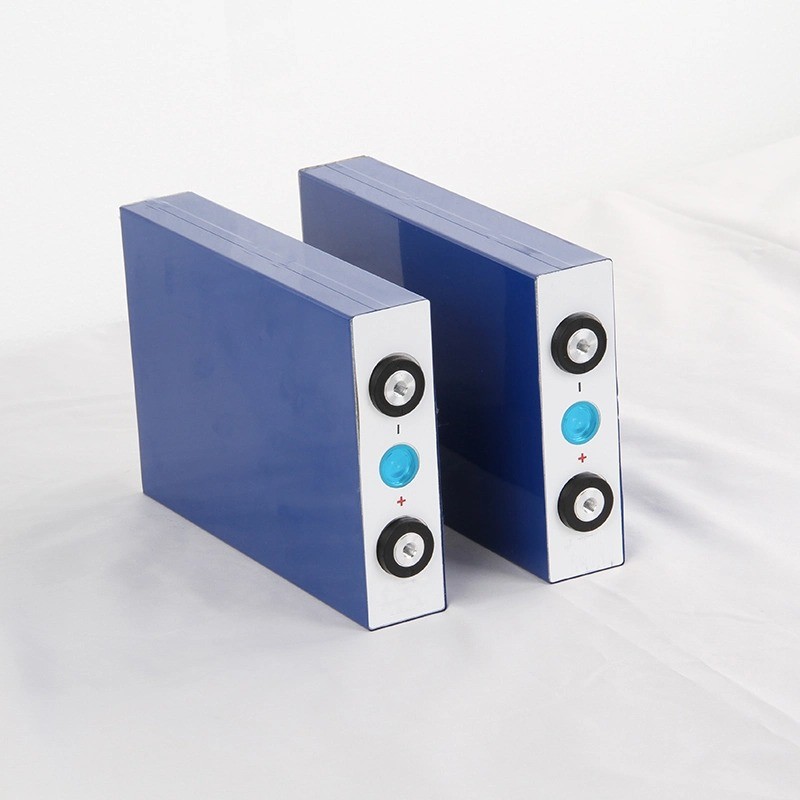

30Ah 80ah 3.2 V 100ah Lifepo4 Battery Cell Lithium Prismatic with UL certificates

Basic Information
Place of Origin: China
Brand Name: Welsonpower
Certification: CE, UL, MSDS, UN38.3, MSDS
Model Number: 3.2V 1.5Ah
Minimum Order Quantity: 200pcs
Price: $0.59-1.99/PCS
Packaging Details: Carton box with pallet
Delivery Time: 30-45work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs per month
Model: LiFePO4 3.2V 1.5Ah Energy: 4.8Wh
Rated Voltage: 3.2V Rated Capacity: 1.5Ah
Application: ESS, EV, Solar System Cycle Span: 3000-5000 Cycles
Self-diacharge Rate: <3% Type: Cylindrical

30Ah LiFePO4 Battery Cell



30Ah LiFePO4 Battery Cell

,

3.2V LiFePO4 Battery Cell

,

30Ah Lithium Ion Pouch Cell





30Ah LiFePO4 Battery Cell



Li-ion Battery Cell 3.2V 30Ah Pouch Rechargeable LiFePO4 Batterie



Product Description



Feature

1. LiFePO4 battery has long life span: the cycle life of lithium iron phosphate battery is more than 2000 times. The life span of same quality lead acid battery is at most 1~1.5 years, and lithium iron phosphate battery in the same conditions, the theoretical life will reach 7~8 years.

2. LiFePO4 battery has high rentention rate and low self-discharge rate: the retention rate of lifepo4 battery is more than 80% after 2000 cycles, with the self-discharge rate which is lower than 3%.

3. LiFePO4 battery has excellent high temperature performance: The peak value of lithium iron phosphate can reach 350℃-500℃ while lithium manganese oxide and lithium cobalt oxide are only about 200℃. The working temperature range is wide (-20 C--75C).



Nominal Voltage 3.2V
Nominal Capacity 30Ah
Energy 96Wh
Internal Resistance ≤10mΩ
Cycle Life >3000 cycles@1C 100% DOD
Months Self Discharge <3%
Efficiency of Charge 100%@0.5C
Efficiency of Discharge 96-99% @1C
Charge Cut-off Voltage 3.65±0.2V
Charge Mode 0.2C to 3.65V, then 3.65V charge current to 0.02C(CC/CV)
Recommend Charge Current 6A
Max. Charge Current 30A
Max. Continuous Discharge Current 30A
Max. Pulse Current 60A(10S)
Discharge Cut-off Voltage 2.5V
Charge Temperature 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity
Discharge Temperature -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity
Storage Temperature 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity
Water Dust Resistance IP54
Cell&Method 1S
Package PVC
Dimensions(in./mm.) 227*165*10.4mm
Weight(lbs./kg.) 680g



Product Images



30Ah 80ah 3.2 V 100ah Lifepo4 Battery Cell Lithium Prismatic with UL certificates 0

30Ah 80ah 3.2 V 100ah Lifepo4 Battery Cell Lithium Prismatic with UL certificates 1

30Ah 80ah 3.2 V 100ah Lifepo4 Battery Cell Lithium Prismatic with UL certificates 2

30Ah 80ah 3.2 V 100ah Lifepo4 Battery Cell Lithium Prismatic with UL certificates 3



Product Advantages


1. Professional technical team: WelsonPower’s R&D technical team has received more than 20 inventions and application patents.

2. Unique pack technique: WelsonPower possesses special pack technique to batter protect the battery cell and increase the life span of the battery pack.

3. Safety certification guarantee: Most batteries have been certificated according to international standard including CE, MSDS, UN38.3, UL etc..

4. Professional sales team: WelsonPower possess well-trained sale team that help clients addressing difficulty meeting during battery selecting and battery using.

5. Punctual delivery: WelsonPower has strict production plan to promise punctual delivery of the goods.

6. Perfect after-sales service: WelsonPower has a professional QC team which applies strict quality control on production and provide perfect after-sales service to clients.







Deep cycle/recycle lithium battery

We current main produce 18650/26650/21700/30700/4680 lithium ion cell and lithium iron phosphate cell,Lithium-ion batteries have a theoretical lifespan of about 800 cycles,and for lifepo4 cell,the cycle life around 1500-2000 times

30Ah 80ah 3.2 V 100ah Lifepo4 Battery Cell Lithium Prismatic with UL certificates 4





BATTERY WITH PCM
The PCM main IC we used Japan Seiko IC,it has Over-charge,over-discharge,over-current and short-circuit Protection function.The PCM also can customized to your request,such as add PTC, NTC,and with cell balance function.

30Ah 80ah 3.2 V 100ah Lifepo4 Battery Cell Lithium Prismatic with UL certificates 5







FINISHED BATTERY WITH PCM



Finished battery usually it is with PCM.Wire, and connector,it used for Bluetooth speaker, led light,solar street light and other digital device.





30Ah 80ah 3.2 V 100ah Lifepo4 Battery Cell Lithium Prismatic with UL certificates 6





Applications

30Ah 80ah 3.2 V 100ah Lifepo4 Battery Cell Lithium Prismatic with UL certificates 7

We Are Real Factory!!!

1 good quality, experience with famous brands

2 OEM service for customized battery

3 26650 cell(2000 times cycle 3 life.after 2000 tims,still keeps 80%of inital capacity

4 Our certification is complete

5 Sample order(<10 pcs) is available---helps you test the quality with "O"risk

6 12 month wanrranty---replace one by one if there is any quality problem

7 In the field of batteries Have more than 10 year professional experience

30Ah 80ah 3.2 V 100ah Lifepo4 Battery Cell Lithium Prismatic with UL certificates 8

30Ah 80ah 3.2 V 100ah Lifepo4 Battery Cell Lithium Prismatic with UL certificates 9

30Ah 80ah 3.2 V 100ah Lifepo4 Battery Cell Lithium Prismatic with UL certificates 10



Production Line

30Ah 80ah 3.2 V 100ah Lifepo4 Battery Cell Lithium Prismatic with UL certificates 11





Packaging & Shipping



Package:

With high quality pearl wool, UN cartons / Plywood, plastic pallet.



Shipping:



By air, by sea, by express, railway transportation and so on.



1. Shippment to USA:By sea+Express(DDP,Tax free)

ETD:5-8 days
ETA:25-35 days after sailing(This is the delivery time for most orders. Please wait patiently or contact us online)
The tracking will be updated after pick up by local express.Usually it will take around 15-25 days after sailing.



2. Shipment to EU:By railway+Express(DDP,Tax free).Except Switzerland,Romania


ETD:5-8 days
ETA:30-45 working days after shipping(This is the delivery time for most orders. Please wait patiently or contact us online)
The tracking will be updated after pick up by local express.Usually it will take around 25-40 working days after shipping.



3. We can't deliver the following address directly:


USA: Military address and PO box address are not acceptable;

Puerto Rico, Virgin Islands, Guam, Alaska Note: Hawaii does not include customs duties and requires additional freight, Please contact us online.
Portugal: Azores and Madeira
Spain:Canary Islands, hueda and melilia
Russia: Kamchatka Peninsula
Other:Some remote areas not listed,Please provide shipping address and zip code to to us to check.



FAQ



Q1: What is your MOQ?
A1: Generally speaking, our MOQ is 100 pieces, which varies with different products.


Q2: Are these batteries brand new?
A2: Yes, all of these batteries we provide are brand new


Q3: Are the cells I bought balanced?
A3: we know the importance of maintaining the consistency of each cell in the battery pack, so we will match and balance all cells to ensure that the internal resistance, voltage, and capacity of cells are completely matched and balanced before delivery. This process is very necessary.


Q4:: I am a distributor. Can I cooperate with the battery warehouse for a long time?
A4: Yes, Individual pricing for large scale projects and wholesale demand is available
